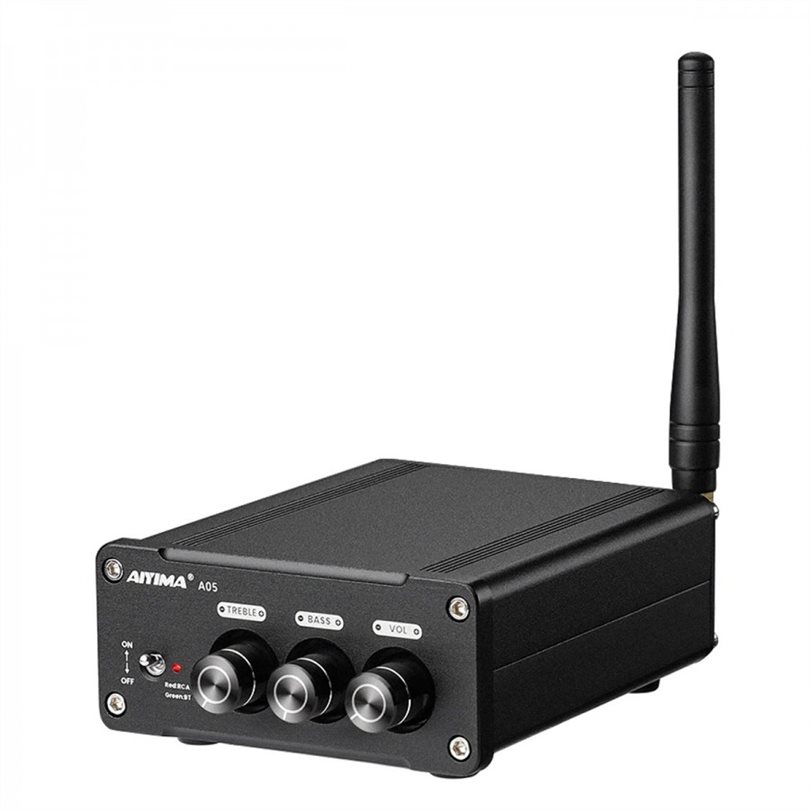

Aiyima A05 is a small, simple and effective Class D amplifier at a low price, ideal for creating a small audio system.
It has a built-in TPA3221 amplifier chip, capable of developing a comfortable power of 2×105 W at 4Ω, with high efficiency. Input is stereo RCA or Bluetooth 5.0, thanks to the Qualcomm QCC3034 receiver, which supports aptX and aptX codecs, allowing you to stream music from your smartphone in near-CD quality.
Characteristics of Aiyima A05:
- Product Type: Amplifier
- Amplifier Type: Class D
- Amplification chip: TPA3221

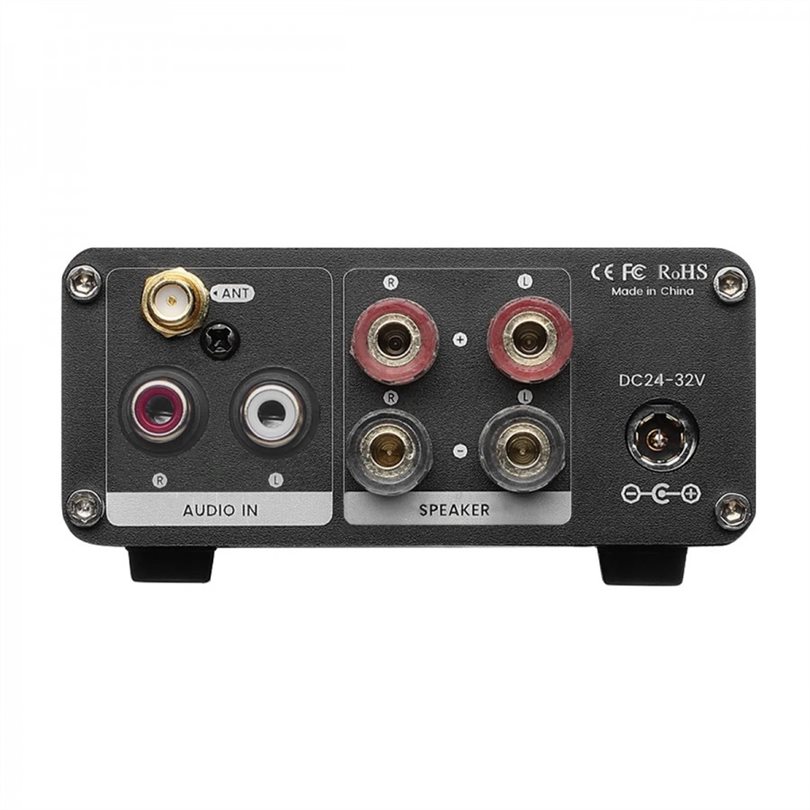

- Inputs: Bluetooth 5.0/1x stereo RCA
- Output: Speaker Terminals
- Bluetooth chip: QCC3034
- Supported Bluetooth codecs: SBC, AAC, aptX, aptX HD
- AOP:NE5532
- SNR: ≥ 108 dB
- Input sensitivity: 0.775V
- Frequency response: 20 Hz – 20 kHz (±3 dB)
- THD: 0.02% (1 kHz, 1 W)
- Speaker impedance: 4-8 ohms
- Output Power: 2x105W / 4 Ohm @ 10% THD+N (With 30V Power Supply) / 2x 85W / 4 Ohm @ 1% THD+N (With 30V Power Supply)
- Power supply: 24-32V DC (power supply sold separately)
- Dimensions: 133 x 91 x 43 mm
- Black color
