The APA1200DSP from Dayton Audio is a powerful and versatile Class D amplifier capable of delivering 2x 560W or 1x 1150W. It is equipped with a DSP processor that provides complete control over every aspect of audio reproduction through an intuitive and ergonomic interface. This DSP includes equalizer, filters, phase control and delay control.
With very low noise and high output power, the APA1200DSP is a very efficient Class D amplifier. With a power output of no less than 2x 560W or 1150W in bridged mode, the APA1200DSP will easily accompany the most demanding speakers.

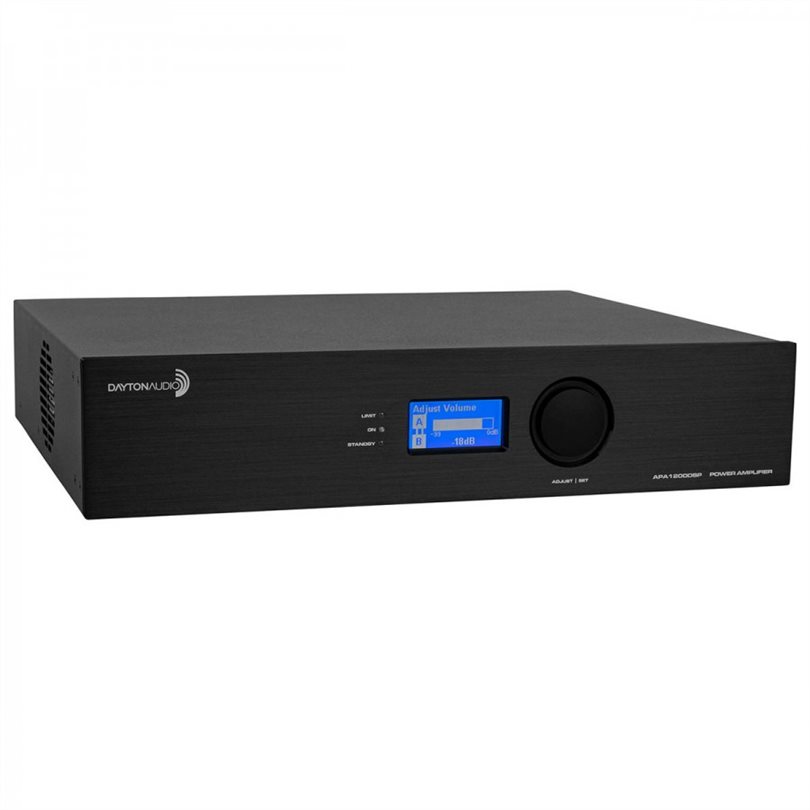

Setting up an audio system can sometimes be a difficult task if the device is not located in the listening area. In addition to front panel controls, the APA1200DSP's internal software provides complete control over every parameter through an intuitive, easy-to-use web interface. It works in any web browser, eliminating the need to install a mobile app or additional software. Multiple devices can be installed on the same network, and profiles can be easily saved and transferred.

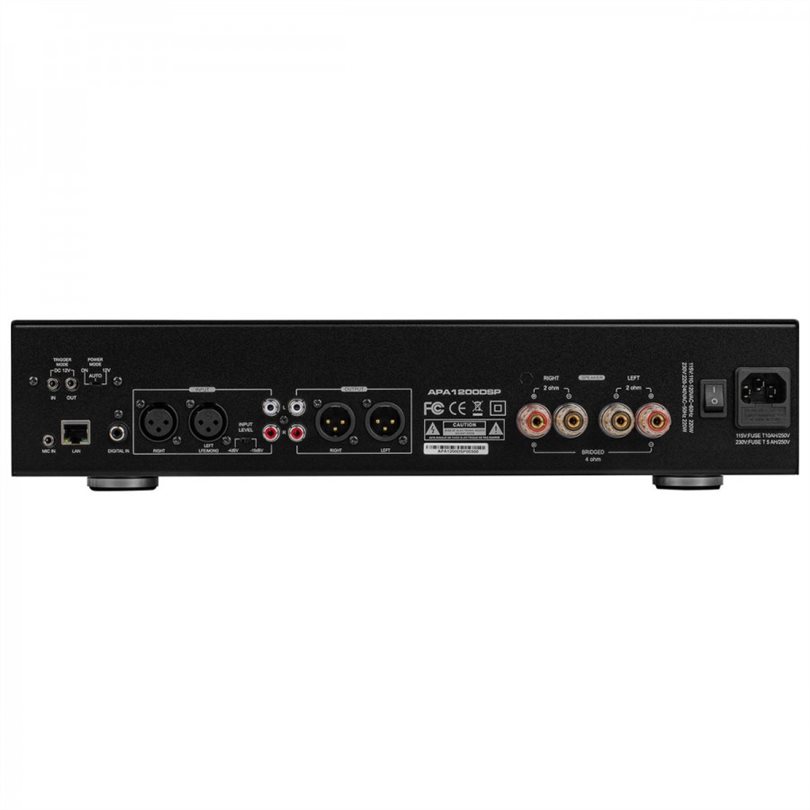

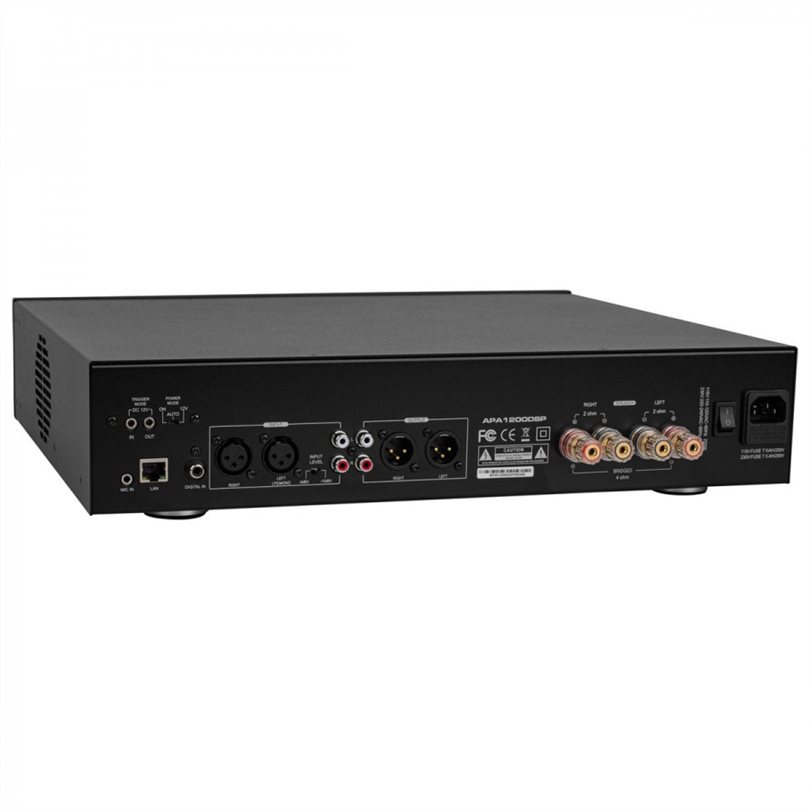

The APA1200DSP provides complete and versatile connectivity. The input section accepts +4dB and -10dB line signals on single-ended RCA or balanced XLR, as well as SPDIF signals on coaxial cable. Providing compatibility with most sources, these inputs are routed to XLR and RCA outputs for multi-zone or subwoofer setups. The two amplified channels can drive 2Ω, 4Ω or 8Ω stereo speakers and can be bridged to drive 1150W 4Ω speakers. The APA1200DSP also features a built-in Ethernet port (RJ45) for network connectivity, as well as 12V trigger input and output for automatic system integration.
The APA1200DSP is more than just an amplifier. The APA1200DSP is a full-featured digital engine with a DSP processor, including an 8-band EQ, limiter, phase and delay control, and an adjustable crossover.
Dayton Audio APA1200DSP Specifications:
- Product type: Amplifier with built-in DSP
- Amplifier Type: Class D
- Output Power: Stereo: 2x 560W/Bridge: 1x 1150W
- Inputs: 1x balanced XLR/ 1x single-ended RCA/ 1x coaxial
- Outputs: 1x balanced XLR/ 1x single-ended RCA
- Input sensitivity: 0.316Vrms @ -10dBV/ 0.631Vrms @ -4dBV
- Maximum input level: 1.8Vrms
- Frequency response: 20Hz – 20kHz
- Frequency deviation (20Hz-20kHz): 3dBrms
- SNR @ A-Weighted: >96 dB
- THD+N @ rated power: 0.74%
- Automatic sensitivity: 10mVrms
- Supply voltage: 115-230VAC
- Consumption: Standby: Max: 1600 W
- Dimensions: 432 x 381 x 95 mm
- Weight: 7.35 kg
- Black color
