The iFi Pro iCAN SIGNATURE tube preamp and headphone amplifier is the quintessence of the brand's know-how, supported by the prestigious AMR company. Based on a transistor-tube hybrid circuit, the iFi Pro iCAN SIGNATURE embodies the best of both technologies, rather than a caricature compromise. Therefore, we can choose the sound as we wish, inserting tube or only transistor sound into the circuit.
Stereo input is via a transistor stage of fast, very low distortion JFETs, accompanied by a bipolar stage, assisted by a Class A Mosfet stage. The tube stage is amplified by two 5670 GEs as close as possible to the ALPS “Black Beauty” potentiometer. 6 tracks in true balanced mode.

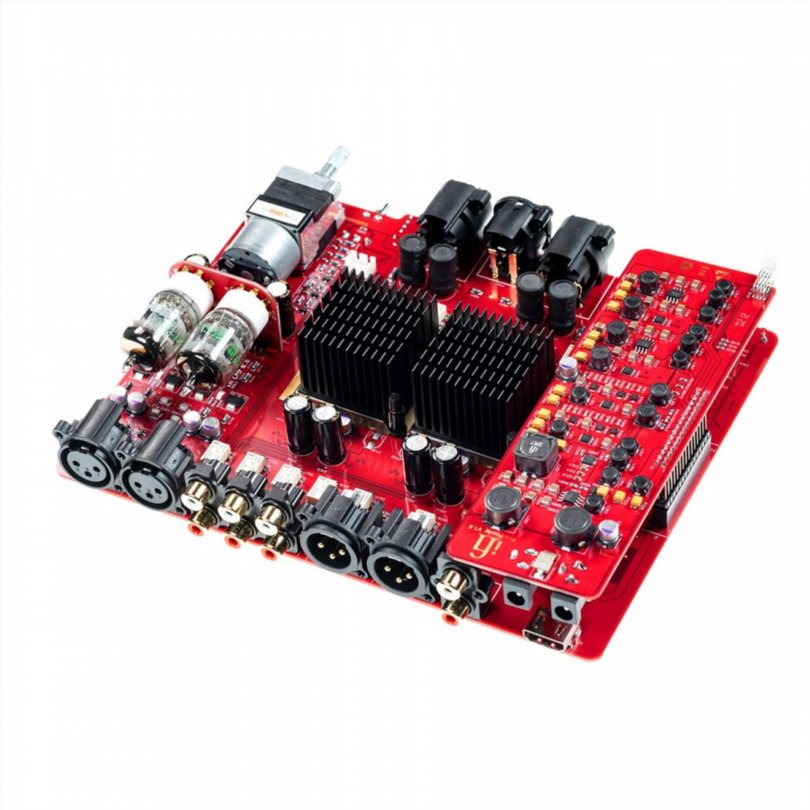

Thus, the iFi pro iCAN SIGNATURE stereo preamplifier is completely symmetrical from input to output on a 4-layer printed circuit.
The circuit, which is fully optimized in current-coupling mode, has no capacitors in its path that could degrade the original signal.
This preamp uses only hand-selected components: Vishay MELF capacitors, TDK COG for the audio part, Elna Silmic II and Panasonic Foil for the power part.
Like any high-end headphone amplifier, the gain is fully adjustable in three positions: 0 dB, 9 dB, 18 dB.
Characteristics of iFi Audio Pro iCAN SIGNATURE:
- Gain: 0 dB, 9 dB, 18 dB – selectable via switch
- Tubes: 2 tubes 5760 GE
- Frequency response: 0.5 Hz – 500 kHz (-3 dB)
- Total harmonic distortion: Transistor stage: ≤0.0015% ≤0.005%, Tube+: ≤0.012% ≤0.2%
- SNR: balanced: > 147 dB(A)/ unbalanced: > 137 dB(A)
- Output Power: Balanced >14,000 mW @ 16 Ω / Unbalanced > 4,800 mW @ 16 Ω
- Voltage level for 600 Ω: Balanced: >23V/ Unbalanced: >11.5V
- Average power consumption: ≤ 22W, 50W max.

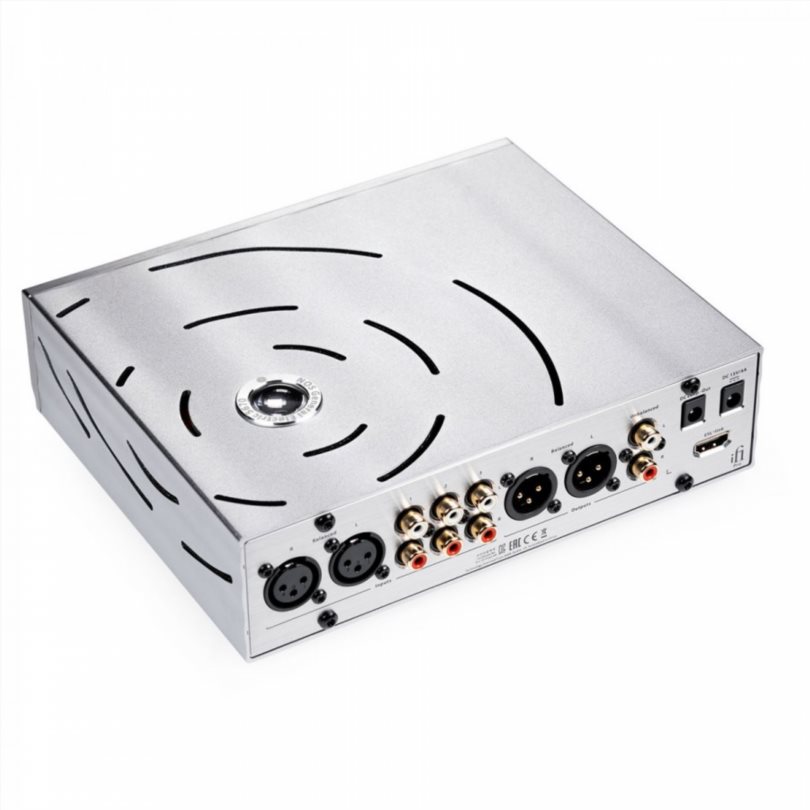

- Inputs: 3x RCA stereo unbalanced gold plated / 1x XLR balanced
- Outputs: 1x XLR variable balanced/ 1x RCA variable unbalanced gold plated/ 2x Jack 6.35 mm switchable to balanced output/ 1x headphone output 4 pin balanced/ 1x Jack 3.5 mm TRS unbalanced/ 1x Jack 3.5 mm TRS balanced
- Dimensions: 213 x 193 x 63 mm
- Net weight: 1.93 kg
