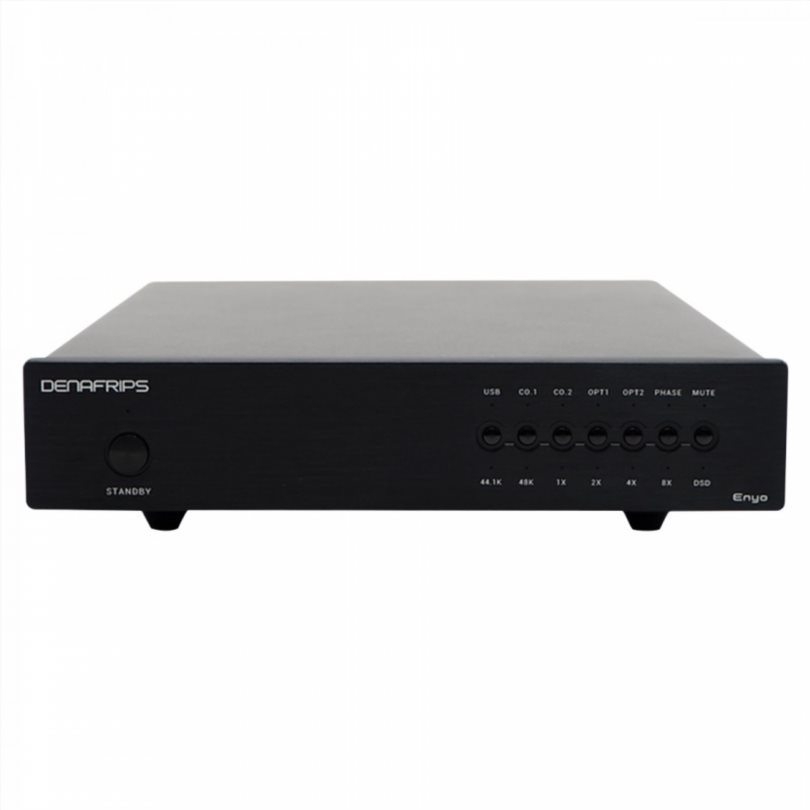

The Denafrips Enyo DAC is an R2R digital-to-analog converter that supports high-resolution audio streams up to PCM 24bit 1536kHz and DSD1024. R2R technology allows Enyo to deliver natural, authentic and musical sound reproduction.
To achieve a high-performance R2R DAC, Denafrips Enyo uses a network of ultra-precise resistors. Each resistor is carefully measured and matched by machine and tested by humans.
The Denafrips Enyo uses a fully ambidextrous R2R design. Each channel is decoded by 4 sets of R2R networks. This design features very low linear error, high decoding speed and low digital noise, ensuring not only low audio distortion but also very low background noise, allowing the listener to fully enjoy the music. The DAC also provides the user with NOS or OS and Slow or Sharp filters.
Characteristics of Denafrips Enyo:
- Product Type: Balanced R2R DAC

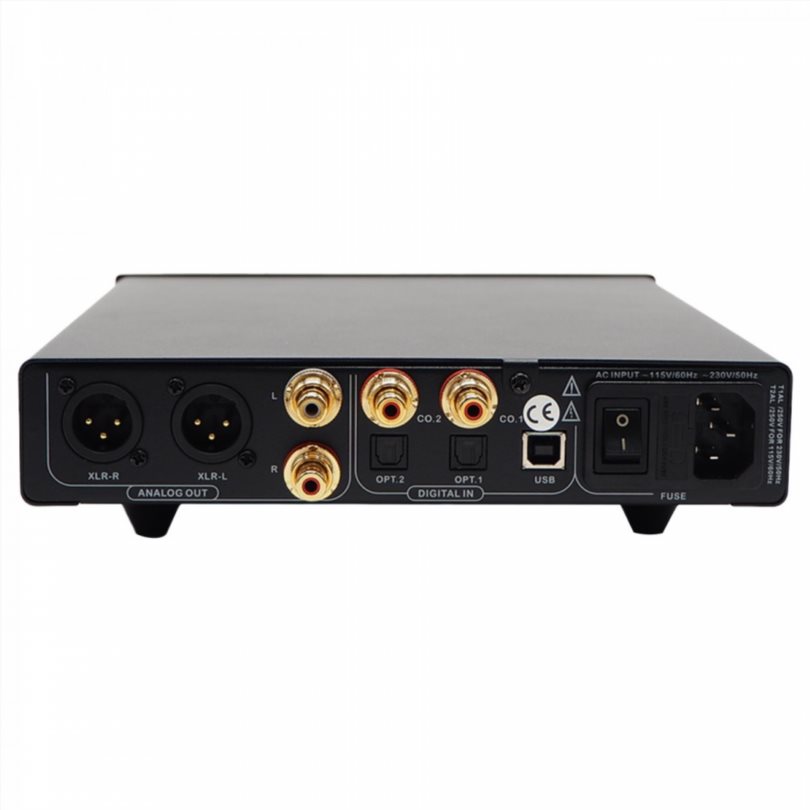

- Inputs: 2x coaxial/2x optical Toslink/1x USB-B
- Outputs: 1x single-ended stereo RCA/1x balanced stereo XLR
- Supported sampling rates: USB: PCM up to 1536 kHz, DSD up to DSD1024 / optical / coaxial: PCM up to 24 bit 192 kHz, DSD up to DSD64 (DoP)
- Sampling rate modes: Non onversampling (NOS)/Oversampling (OS)
- Output Impedances/Levels: RCA : 625 ohms @ 2Vrms/XLR : 1250 ohms @ 4Vrms
- Filters: slow/fast
- Frequency response: 20 Hz – 70 Hz (-3 dB)
- THD+N: 0.004%
- SNR: 115 dB
- Dynamic range: > 119 dB
- Crosstalk: -124 dB
- Supply Voltage: 100-240V AC 50/60Hz (selectable voltage)
- Consumption: ≤ 20W
- Black color
- Dimensions: 230 x 215 x 45 mm
