The new EPZ TP50 is equipped with two flagship CS43198 DACs and two RT6863 power amplifiers, and an ultra-low noise LDO power supply ensures clean power and reliable support for audio quality.

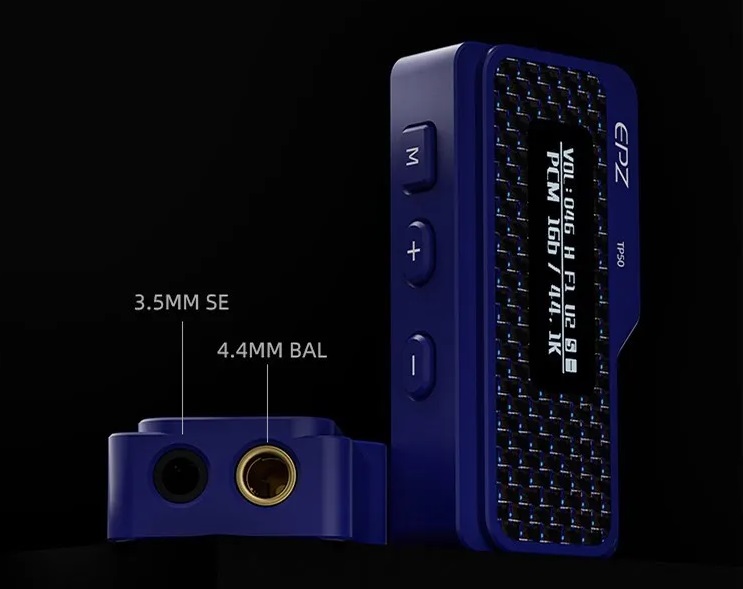

Two CS43198 chips independently decode left and right channels, supporting fully balanced four-channel decoding, greatly reducing interference between channels, two RT6863 headphone amplifiers easily drive high-power headphones. There are two most popular headphone outputs on board – 3.5mm and 4.4mm.

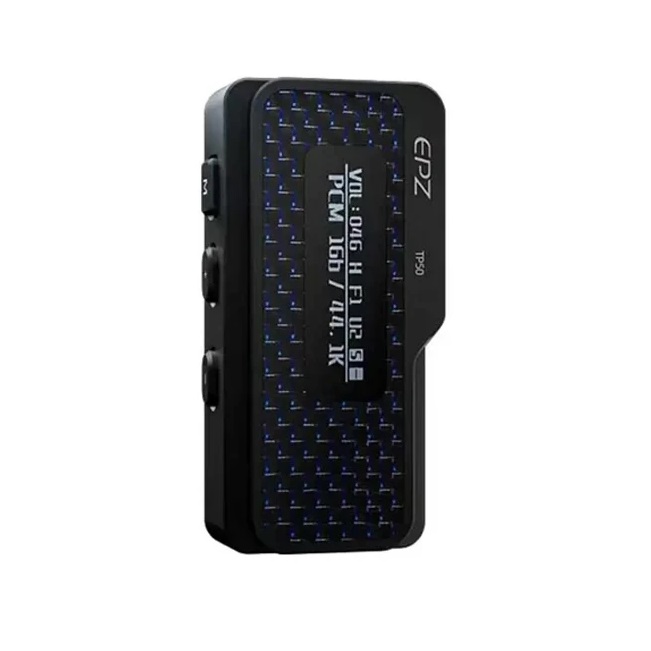

A fusion of metal and carbon fiber,
the TP50 features an innovative dual design, lightweight CNC metal and carbon fiber body. The exquisite combination of carbon fiber panels of the same style is a mixture of sophistication and fashion.
This design not only makes the appearance more attractive, but also has better performance in terms of lightness. Now the weight is only 28g!
TP50 uses a 0.87-inch screen, which can display operations, songs, sampling frequency, audio amount, high and low gain, everything is clear at a glance.
Characteristics of EPZ TP50:
- DAC: 43198×2
- Amplifier: RT6863x2
- PCM: 32Bit/768KHz/DSD256
- Output Power: 2vrms@32 ohm 121mW (3.5mm) / 4vrms@32 ohm 240mW (4.4mm)
- Signal to noise ratio: 125 dB (3.5 mm) / 130 dB (4.4 mm)
- THD+N: 0.0005%
- Dynamic Range: 125 dB (3.5 mm) / 130 dB (4.4 mm)
- Output: 3.5mm+4.4mm
- Input: Type-C or Lightning
- Frequency range: 20 Hz – 80 KHz
- Colors: black/purple
