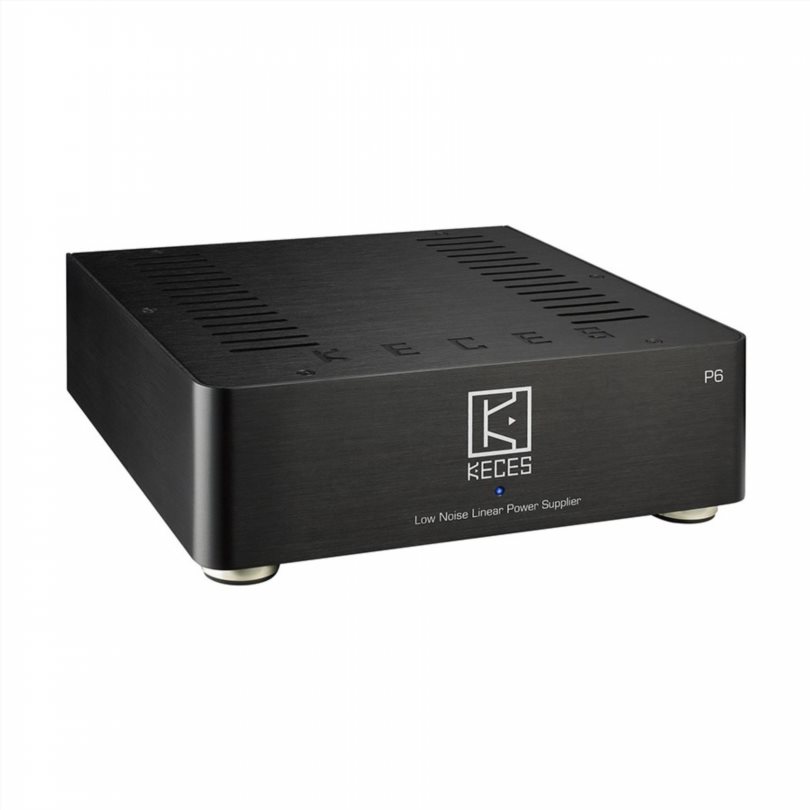

Keces P6 is a high quality regulated linear power supply that will provide your audio system with high fidelity, clean electrical signal. The power supply is carefully designed with a high quality toroidal transformer and a separate ground for each rail. This internal design provides ultra-low signal noise and eliminates all “buzz” at 50 Hz and maximum load. The power supply also has protection against exceeding the maximum operating temperature (Over Temperature Protection). All components are housed in a durable and stylish matte black aluminum housing. The brand logo is imprinted into the aluminum on the power supply cover. The front panel display shows the voltage and current supplied to each output.

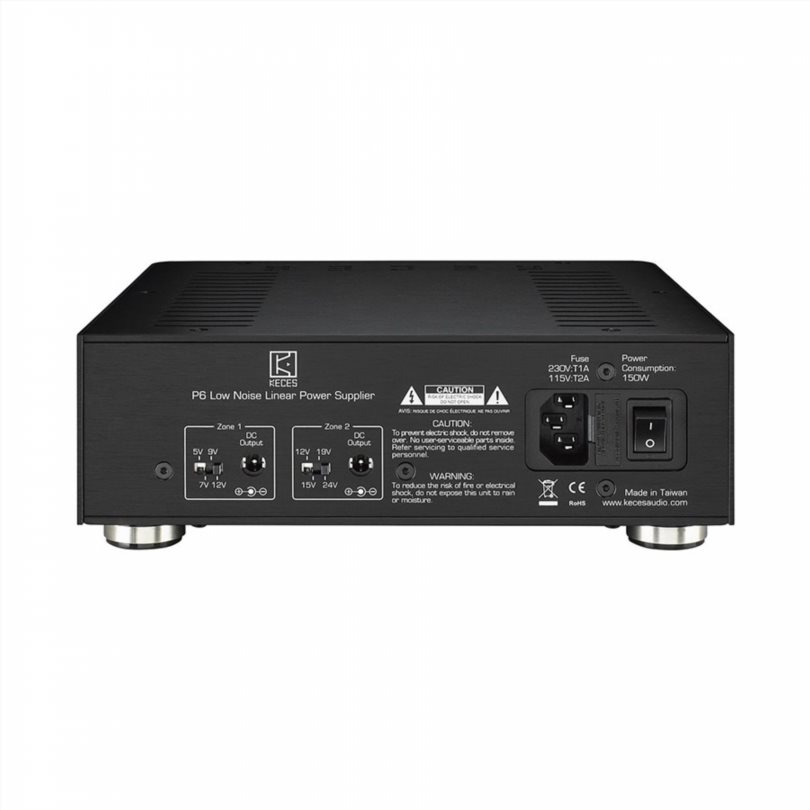

Keces P6 is especially interesting because it offers two adjustable DC outputs. Thus, the first output can be set to 5 V, 7 V, 9 V or 12 V, and the second – to 12 V, 15 V, 19 V or 24 V. A switch on each output allows you to simply select the desired voltage. In terms of current, each output supplies 3A. The input voltage can also be selected (230V or 115V AC) using a switch under the device to adapt to the current supplied by your wall outlets.
Characteristics of Keces P6:
- Product Type: Adjustable Linear Power Supply
- Input voltage (switchable): AC 110V-120V 60Hz/AC 220V-240V 50Hz
- Output voltage: Output 1: DC 5V/7V/9V/12V/Output 2: 12V/15V/19V/24V
- Output Connector: DC 5.5/2.5mm Jack
- Consumption: 150 W (full load)
- Housing: brushed aluminum 4 mm
- Dimensions: 220 x 220 x 66 mm
- Weight: 3 kg
- Black color
- Contents: 1x Keces P6/1x Schuko/IEC power cable/2x DC 5.5/2.5 mm connector to DC 5.5/2.1 mm connector cable/2x DC 5.5/2.1 mm connector to 5.5/2.5 mm connector cable Protections Output voltage Overload protection Protection Undervoltage protection Overload protection Overheat protection
