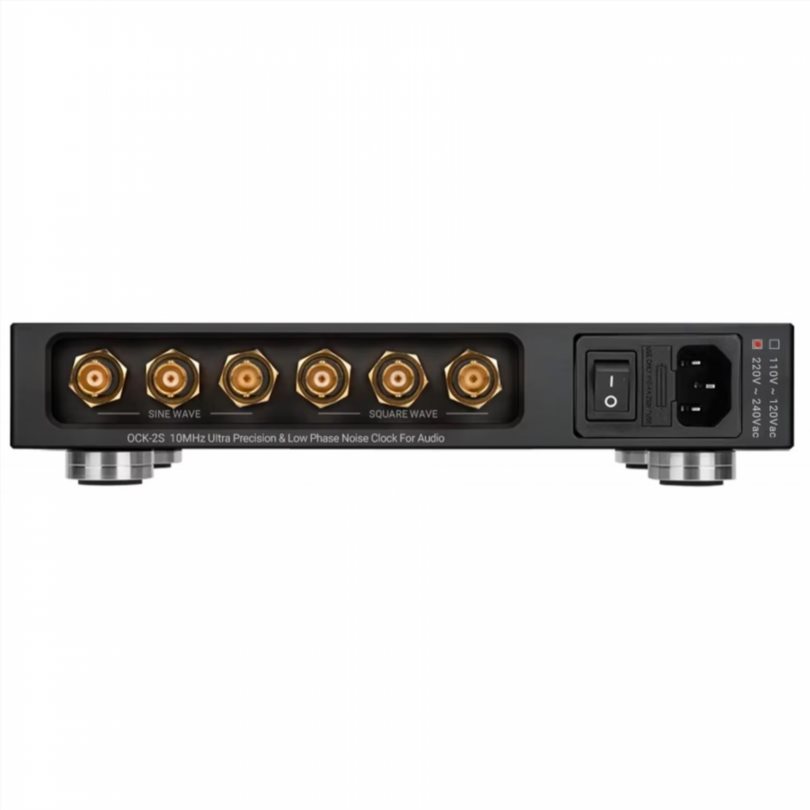

The LHY Audio OCK-2S is a master clock engineered for high precision and ultra-low phase noise, aimed at reducing sampling errors in high-resolution audio streams. It features six separate 10 MHz outputs with 50/75Ω impedance on BNC connectors, comprising three sine wave outputs and three square wave outputs. Utilizing a high-performance OCXO oscillator, it greatly enhances the overall performance of any Hi-Fi audio system.
You will discover high-quality components within, featuring a linear power supply that delivers a clean signal equipped with an EMI filter, a Talema 15VA transformer, and a high-speed rectification filter. The crystal oscillator is supported by three LT3042+ PNP voltage regulators, ensuring exceptional accuracy.
Characteristics of LHY Audio OCK-2S:
- Product Type: Master Watch
- Oscillator: OCXO
- Output waveform: 3x sine wave/ 3x square wave
- Output frequency: 6x 10 MHz
- Output impedance: 50 Ohm/ 75 Ohm
- Frequency stability: ±5ppB
- Frequency accuracy: ±0.05ppm
- Output noise: ≤ -110dBc @ 1Hz
- Short-term stability: ±2×10-12 @ 1s
- Heating time: 15 min
- Consumption: Preheating: 8W / Operation: 5W
- Color: black or silver
- Dimensions: 240 x 50 x 175 mm
- Weight: 2.1 kg
