The fully balanced Little Dot MK VI+ architecture has exceptional dynamic range and can reproduce clean 70Vp-p amplitudes into 120 ohms! Balanced Class A SEPP (single-ended push pull) OCL (output capacitor-less) circuit topology delivers rich tone and clean power for maximum dynamics and low-frequency impact.

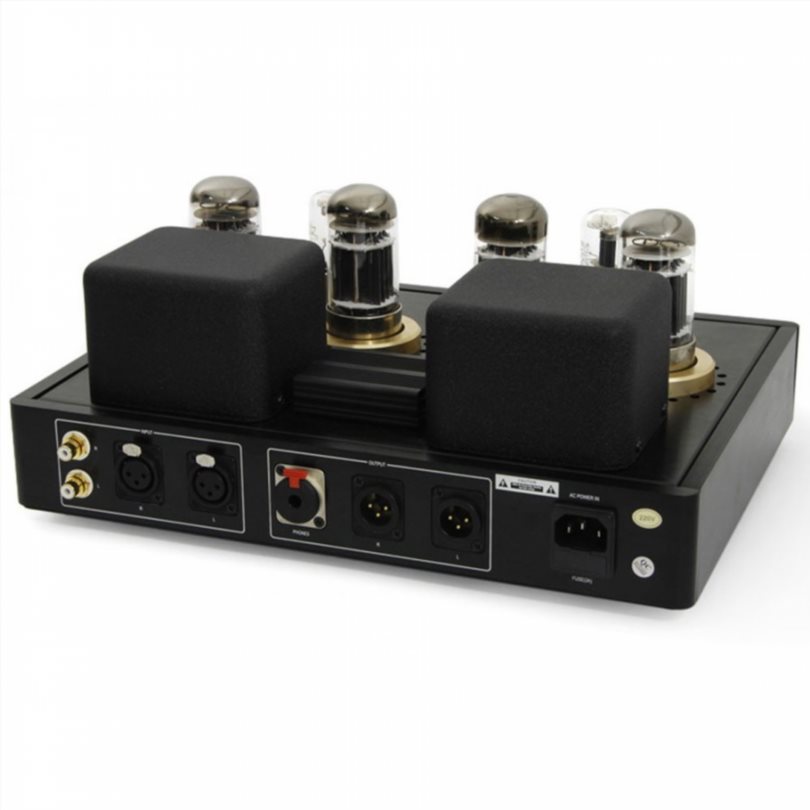

Characteristics of Little Dot MK6+:
- Available in black or silver
- Fully balanced architecture
- SEPP (Single-ended Push Pull) OCL (Output CapacitorLess) in class A
- Active cooling with 2 fans
- Bulbs: 2x 6H9C
- Power tubes: 4x 6080WC
- Inputs:
- Balanced: 2x 3-pin XLR
- Single sided: 2x RCA
- Outputs:
- Balanced: 4-pin XLR
- Balanced Preamp: 2x 3-pin XLR
- Single-sided: 1/4″ (6.35 mm) TRS stereo jack
- Frequency Response: Input Impedance: 50K Ohms
- 5 Hz – 80 KHz (-3 dB)
- 10 Hz – 30 KHz (-1 dB)
- Preamp output impedance: 600 ohms
- THD+N:Output Power:
- 0.02% (2Vrms @ 1000Hz)
- 0.06% (10Vrms @ 1000Hz)
- 0.3% (20Vrms @ 1000Hz)
- 5 W per channel into 120 ohm load
- Power consumption: 25 VA
- Little Dot One Year Official Warranty
