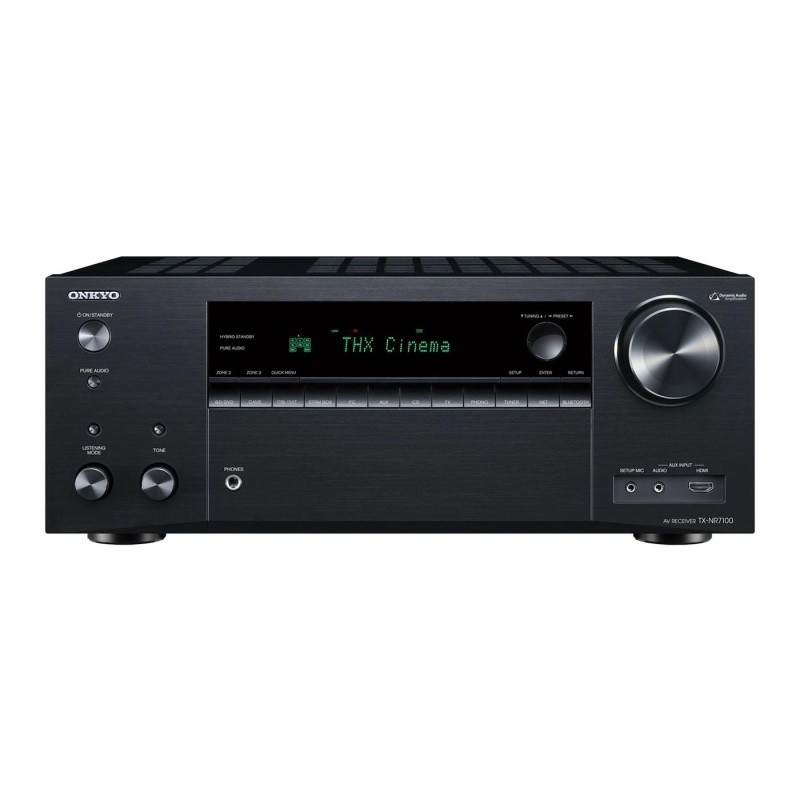

The Onkyo TX-NR7100 AV receiver, with its 9-channel setup, boasts a range of cutting-edge technologies perfect for creating a contemporary home theater experience. Its sleek design and well-placed front panel controls ensure ease of use without drawing unnecessary attention. The model holds the esteemed THX certification and meets IMAX Enhanced standards, guaranteeing top-notch sound and image quality akin to a real cinema.
Onkyo TX-NR7100 B M2

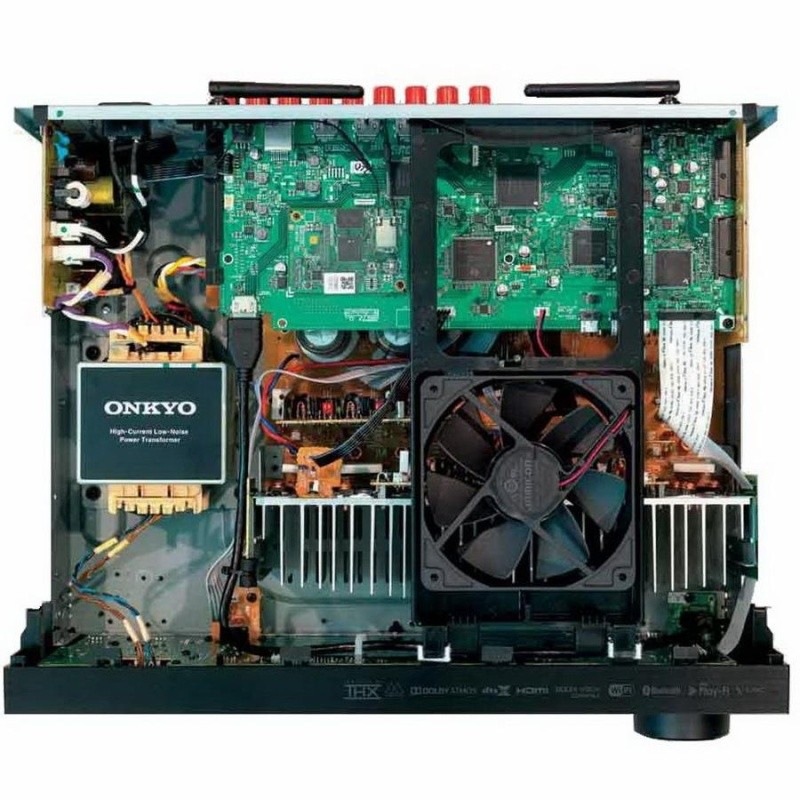

With amplifiers utilizing Dynamic Audio Amplification technology, the Onkyo TX-NR7100 can deliver up to 220 W of output power. The power amplifiers are crafted using discrete components in a two-stage configuration. Featuring seven HDMI inputs (including one on the front panel) and two outputs supporting 8K video, HDCP2.3, Dolby Vision, HDR10+, and eARC, this AV receiver is well-equipped for the latest standards.
The built-in decoder set includes Dolby Atmos and DTS:X, allowing for surround sound systems up to 7.1.2 or 5.1.4 configurations, along with Dirac Live technology for optimal home theater setup. Additionally, the Onkyo TX-NR7100 offers outputs for connecting two subwoofers and a wide range of inputs, including analog and digital connections, as well as an MM-pickup input for vinyl players. With a modern multimedia platform for streaming content, the AV receiver supports Ethernet, dual-band Wi-Fi, and technologies like DTS Play-Fi, AirPlay2, and Chromecast.
Onkyo TX-NR7100 B M2
This versatility makes it a versatile music source for network drives, online services, and external drives via the USB port. The Onkyo TX-NR7100 also features two-way Bluetooth connectivity, allowing users to enjoy music from compatible devices or stream signals to Bluetooth headphones.
Onkyo TX-NR7100 B M2
Features
- 9 channels of sound amplification
- Dolby Atmos and DTS:X decoder, DTS Neural:X technology
- THX and IMAX Enhanced Certifications
- Ethernet, Wi-Fi, Bluetooth, DTS Play-Fi, Chromecast, AirPlay2, USB for portable media
Specifications
| Number of amplification channels | 9 |
| output power | 220W per channel (6 Ohms, 1 kHz, THD 10%, 1 channel driven) |
| Input sensitivity/impedance | 200mV/82kOhm (line input), 3.5mV/47kOhm (MM input) |
| Signal to noise ratio | 106 dB (Line), 80 dB (Phono) |
| Impedance of the speaker | 4 – 16 Ohm |
| FM tuner | 87.5 MHz – 108 MHz |
| AM tuner | 522 kHz – 1611 kHz |
| Built-in decoders (main) | Dolby Atmos, DTS:X, Dolby Digital Plus, DTS-HD High Resolution Audio, Dolby TrueHD, DTS-HD Master Audio |
| Additionally | DTS Neural:X technology for generating virtual height channels |
| Auto-calibration system | Dirac Live |
| Supported audio file formats (USB, Ethernet, Wi-Fi) | MP3/WMA/AAC/FLAC 192/24, WAV 192/24, ALAC 96/24, DSD 2.8, DSD 5.6, DSD 11.2 MHz, JPEG |
| Bluetooth support | Two-way, support AAC (reception) and aptX HD (transmission) |
| Sonos Support | Yes |
| Roon support | Yes |
| AirPlay 2 and Chromecast support | Yes |
| Onkyo App Support for iPhone and Android | Yes |
| Direct mode | Yes |
| Adjusting the crossover frequency | Yes |
| Tone control | +/- 10 dB (LF, HF) |
| Inputs | 7 HDMI with 8K Ultra HD/HDCP 2.3 support (1 on the front panel), optical, coaxial, for MM-pickup, 6 line, 2 composite, component, USB for portable media |
| Outputs | 2 HDMI (one with eARC), 2 subwoofer outputs, 2-zone output, 6.3 mm headphone jack |
| Speaker outputs | 9 pairs of screw terminals |
| Other switching | Ethernet, Wi-Fi (2) and AM/FM antenna jacks, RS-232, 12V trigger output, IR sensor input |
| Power consumption | 750W, 0.1W in Standby mode |
| Dimensions (WxHxD) | 435x173x380 mm |
| Weight | 10.4 kg |
