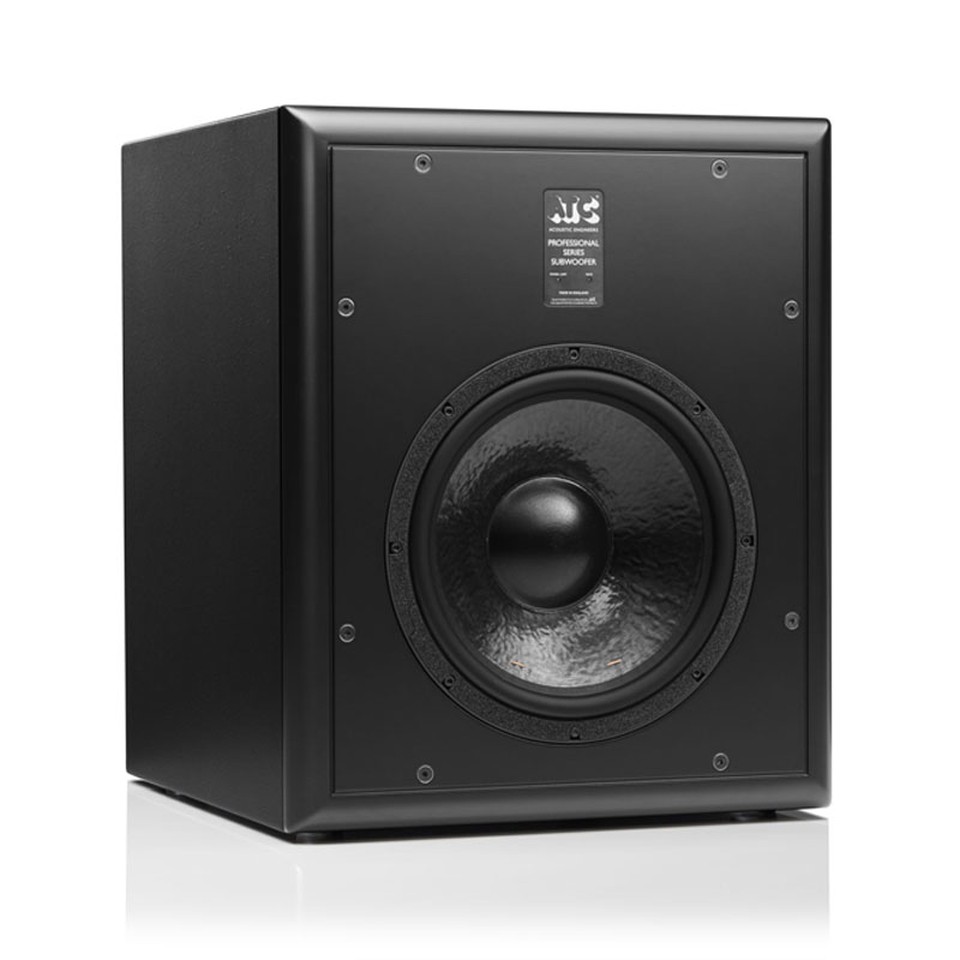

The British company ATC has begun shipments of the new professional active bass machine SCS70 Pro, equipped with a new 12″ bass driver with a shortened voice coil, the stroke of which is increased by 50% compared to previous speakers. Also available as SCS70iW Pro for concealed installation (embedding in walls, etc.).
As you might guess, the new product is designed for use with active studio monitors of the same brand, and in systems with any configuration (stereo, surround, 3D).
Also available as SCS70iW Pro for concealed installation (embedding in walls, etc.).
The lower limit of the frequency range is 22 Hz, and it was achieved without electronic correction – solely due to a special bass driver and an increased body volume. This “simple” approach has reduced phase shift and group delay, making it easier to interface with the main speakers.
The amplifier is also new with a power of 300 W in class AB. Assembled by hand at the company's factory. The low-pass filter is analog of the 4th order, built according to the Linkwitz-Riley scheme.
The maximum sound pressure level is 116 dB (continuous – 110 dB). It is possible to combine several subs into a group for scoring large spaces.
The announced price is $5490.
Visit official site here.
SCS70 Pro
12”/300mm professional active subwoofer
Key Features
- ATC hand-built high-excursion 12”/300mm SS75-314SC subwoofer driver.
- Exceptional balance of high SPL capability, low cut-off and low distortion.
- ATC discrete MOSFET class AB power amplifier.
- Stereo balanced inputs & stereo ‘Link’ balanced outputs.
- Level, Low-Pass Frequency & Phase user controls.
- Remote muting via footswitch*.
SCS70iW Pro
12”/300mm in-wall professional active subwoofer
Key Features
- In-Wall (flush mount) cabinet design with reduced depth and remote mounted amplifier.
- ATC hand-built high-excursion 12”/300mm SS75-314SC subwoofer driver.
- R1-300 7U/19” remote rack mount amplifier.
- Amp – Sub connection via NL4 speaker & 5-pin XLR LED cable*
- Stereo balanced inputs & stereo ‘Link’ balanced outputs.
- Level, Low-Pass Frequency & Phase user controls.
- Remote muting via footswitch**.
- Hand-built in England and covered by a 6 year warranty.
