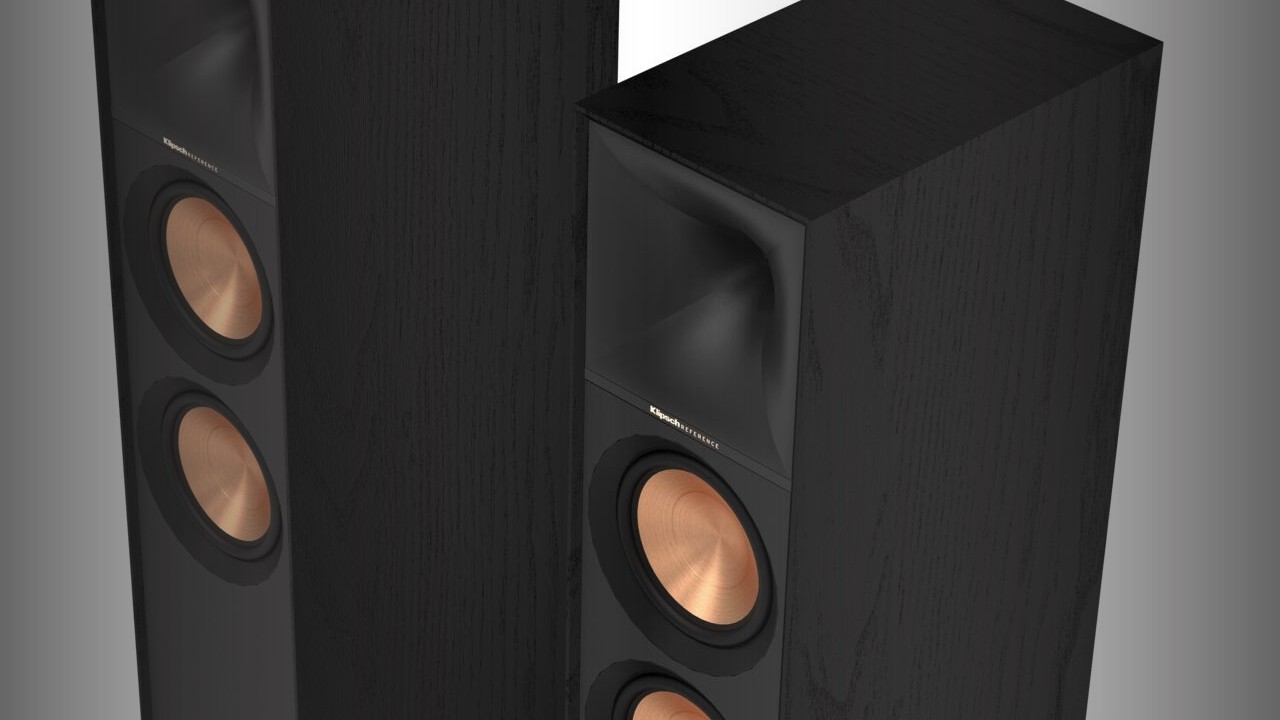

Klipsch R-600F: Floorstanding Speakers boasting next-gen horn-loaded technology

The Klipsch R-600F floor-standing speakers, part of the refreshed Reference Base series, feature an enhanced design compared to their predecessors. The speakers now boast a more appealing exterior, thanks to a new vinyl finish that mimics natural wood, along with striking fasteners on the front panel. Furthermore, the addition of new, elegantly designed supports ensures both aesthetic appeal and essential stability.

The Klipsch R-600F features dual bass drivers measuring 165 mm in diameter. These drivers are constructed with IMG cones that have a copper finish, providing a striking look when the protective grilles are removed. Conversely, when the grilles are attached to the front panels, the Klipsch R-600F can blend more seamlessly into the surrounding decor. The grilles utilize magnetic clamps for secure attachment.

The woofers are integrated with a patented Tractrix phase inverter, a design feature that has been utilized in higher-end Klipsch audio systems, ensuring minimal noise and outstanding efficiency. The bottom-mounted outlet design allows for optimal use of the speaker's internal volume to enhance woofer performance. As a result, these relatively small speakers deliver a robust and full sound. To prevent sound distortion at elevated volumes, the Klipsch R-600F cabinet is strengthened with internal bracing. Additionally, the input connector block features dual gold-plated screw terminals.

The tweeter in the Klipsch R-600F is housed within a newly designed Tractrix horn that features a 90 x 90 degree dispersion pattern, with a refined inner surface. The enlarged opening area of the horn has enhanced the integration of the high-frequency driver with the woofer, resulting in a smoother crossover response and improved midrange sound quality. The tweeter utilizes an aluminum dome mounted on a linear travel suspension made of kapton. This design allows the high-frequency driver to produce sound across a broad spectrum with minimal distortion, contributing to a well-defined and expansive stereo image.

Klipsch R-600F Specifications

• Number of Bands 2
• Number of Drivers 3
• Enclosure Type Tractrix Bass Reflex on the Rear Panel
• Tweeter 1” (25 mm) tweeter with aluminum dome membrane, placed in a Tractrix horn 90 x 90 degrees
• Midrange / Low Frequency Emitter 2 x 6.5 ” (165 mm) Midrange / Low Frequency Driver with IMG diffuser, coated with copper
• Frequency Response 38 Hz – 21 kHz
• Sensitivity 96 dB (2.83 V / 1 m)
• Nominal Impedance 8 Ohm
• Input Power Amplifier 100-400 W (peak)
• Crossover Frequencies 2000 Hz
• Input Connectors A pair of screw terminals
• Grille Removable
• Dimensions (WxHxD) 240x1017x386 mm
• Weight 18.6 kg
